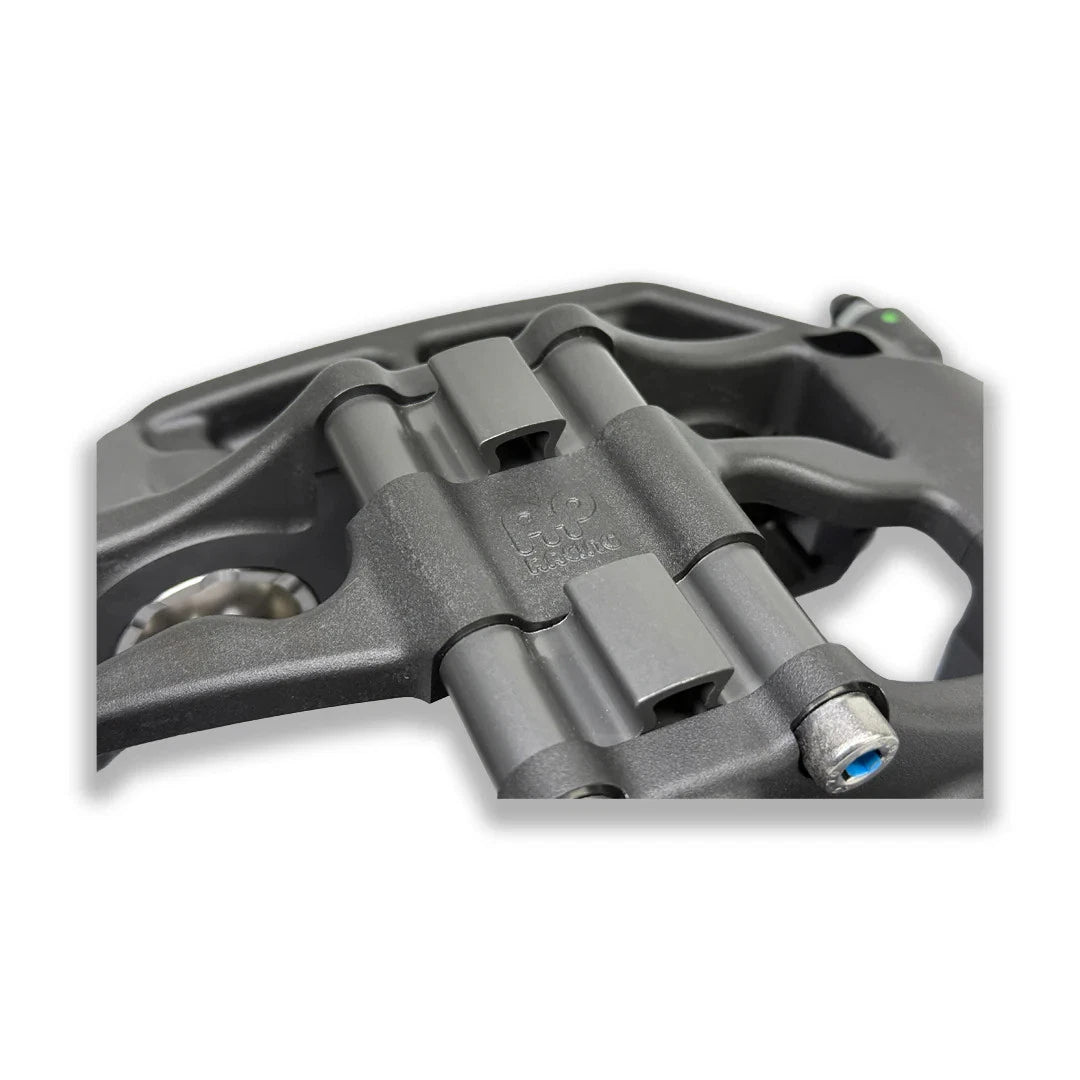

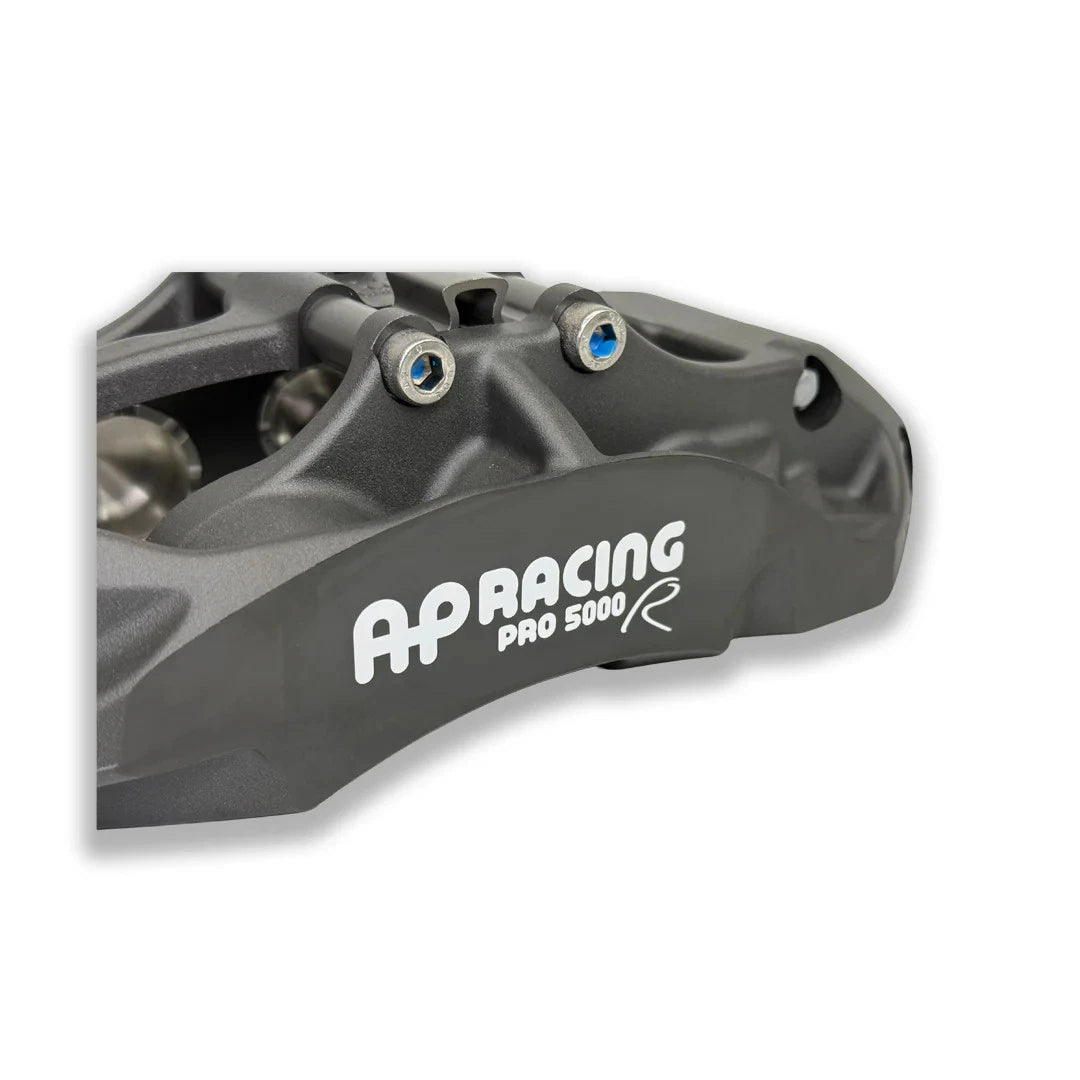

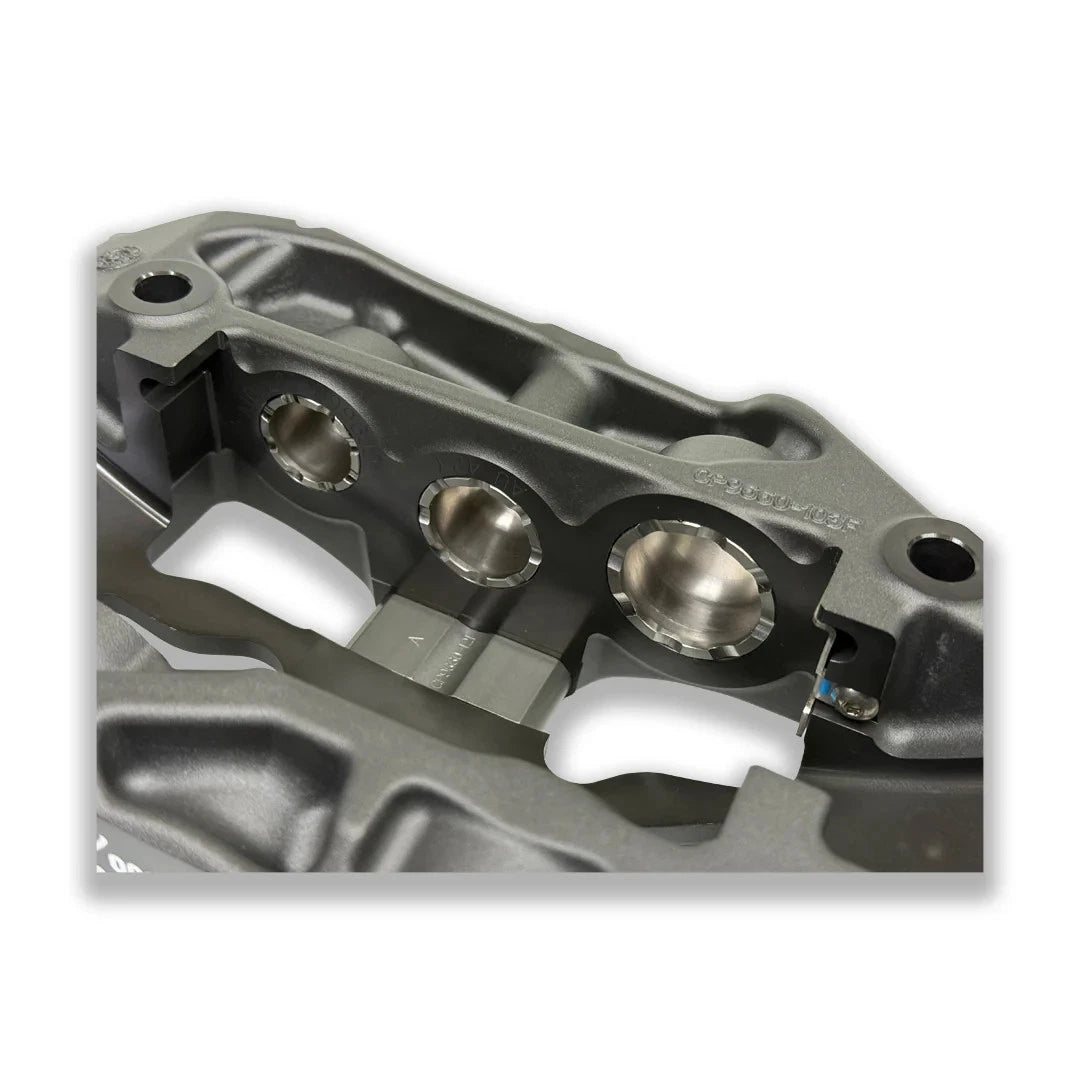

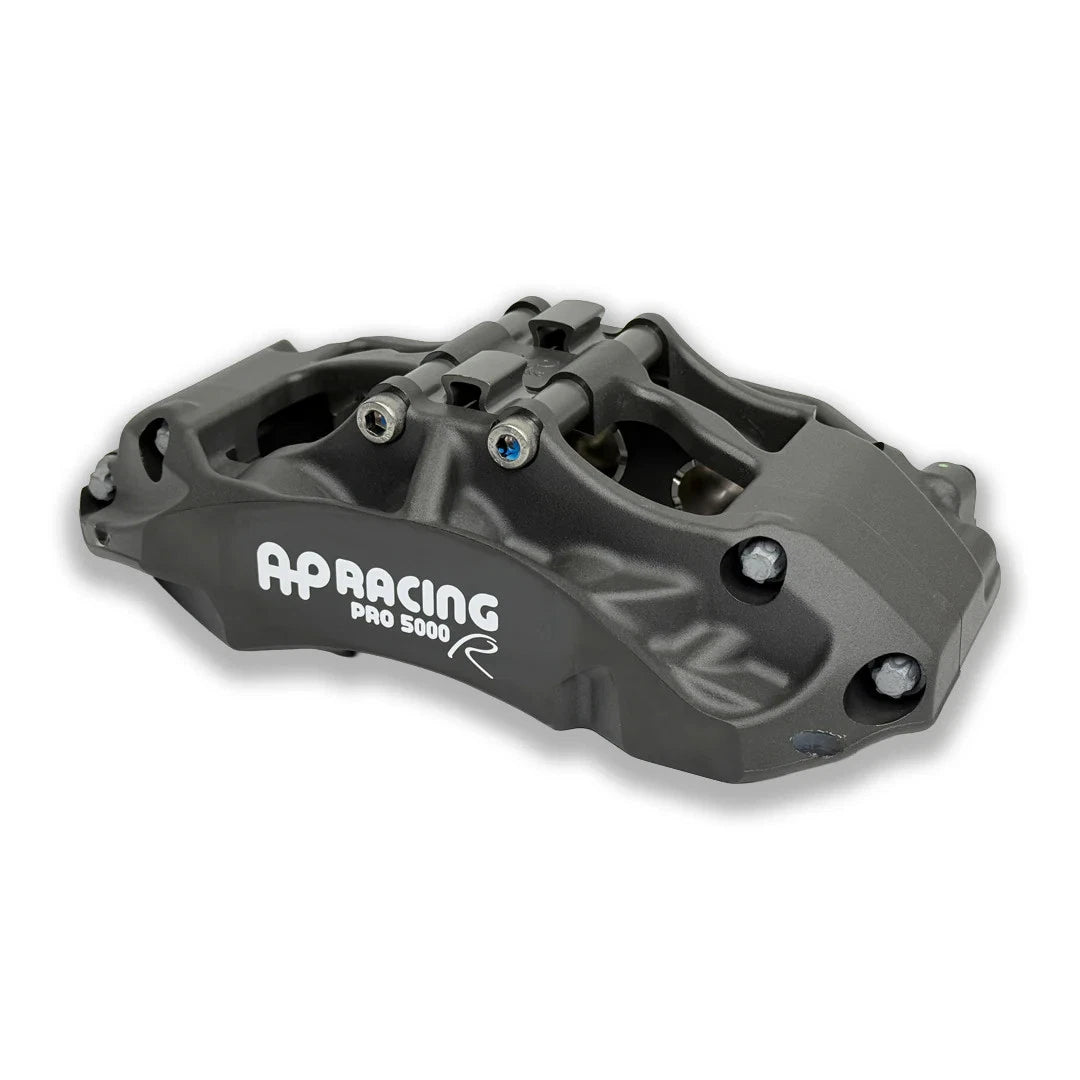

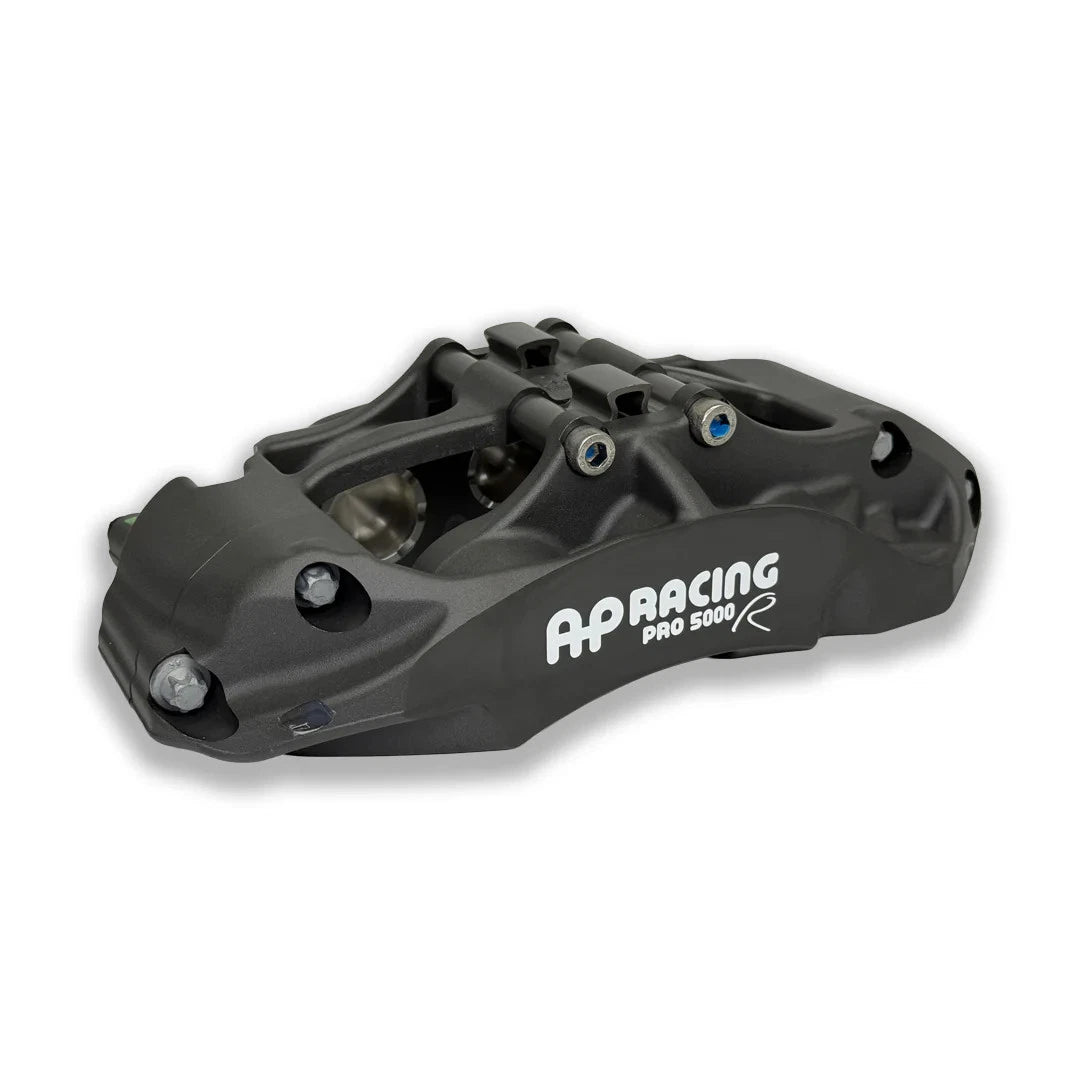

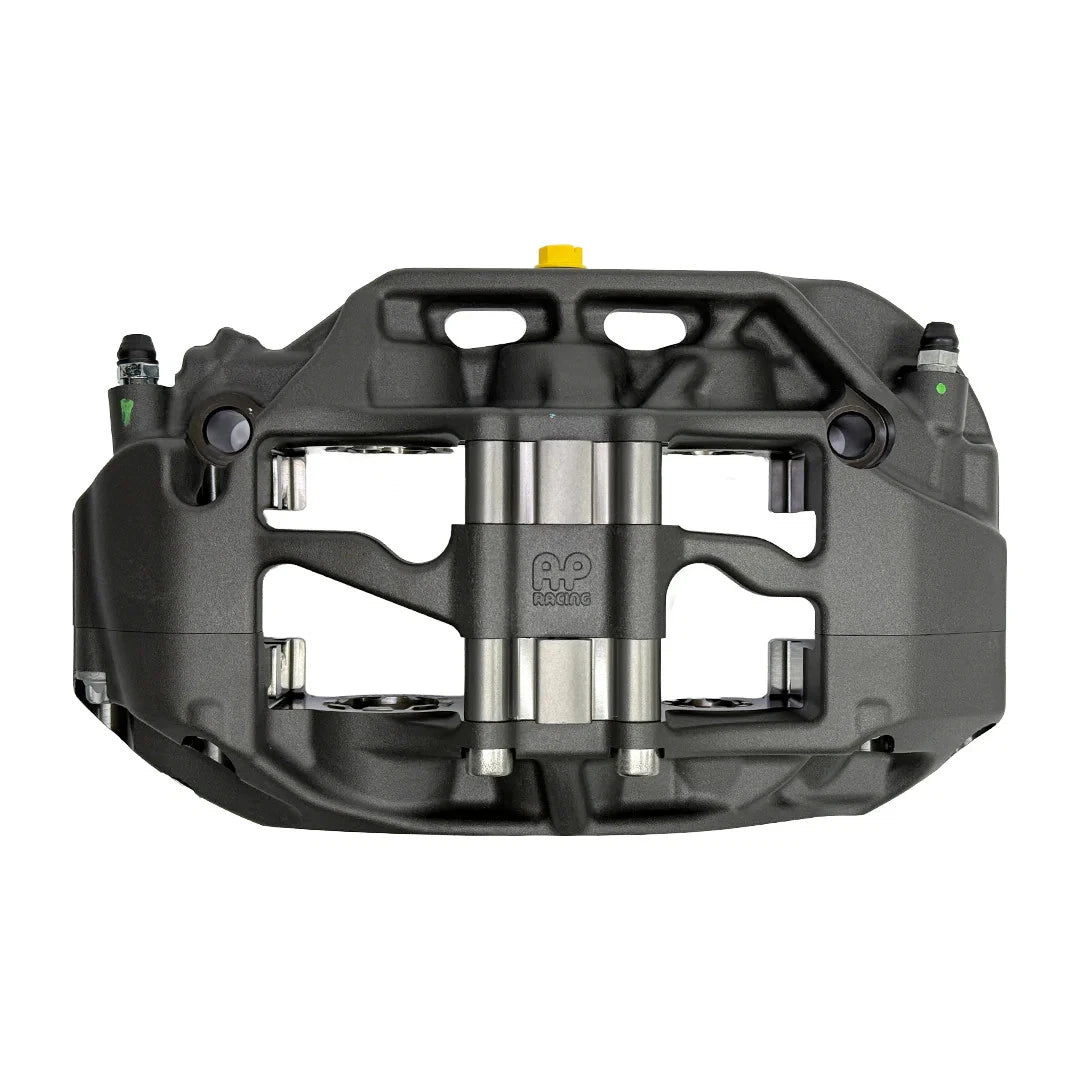

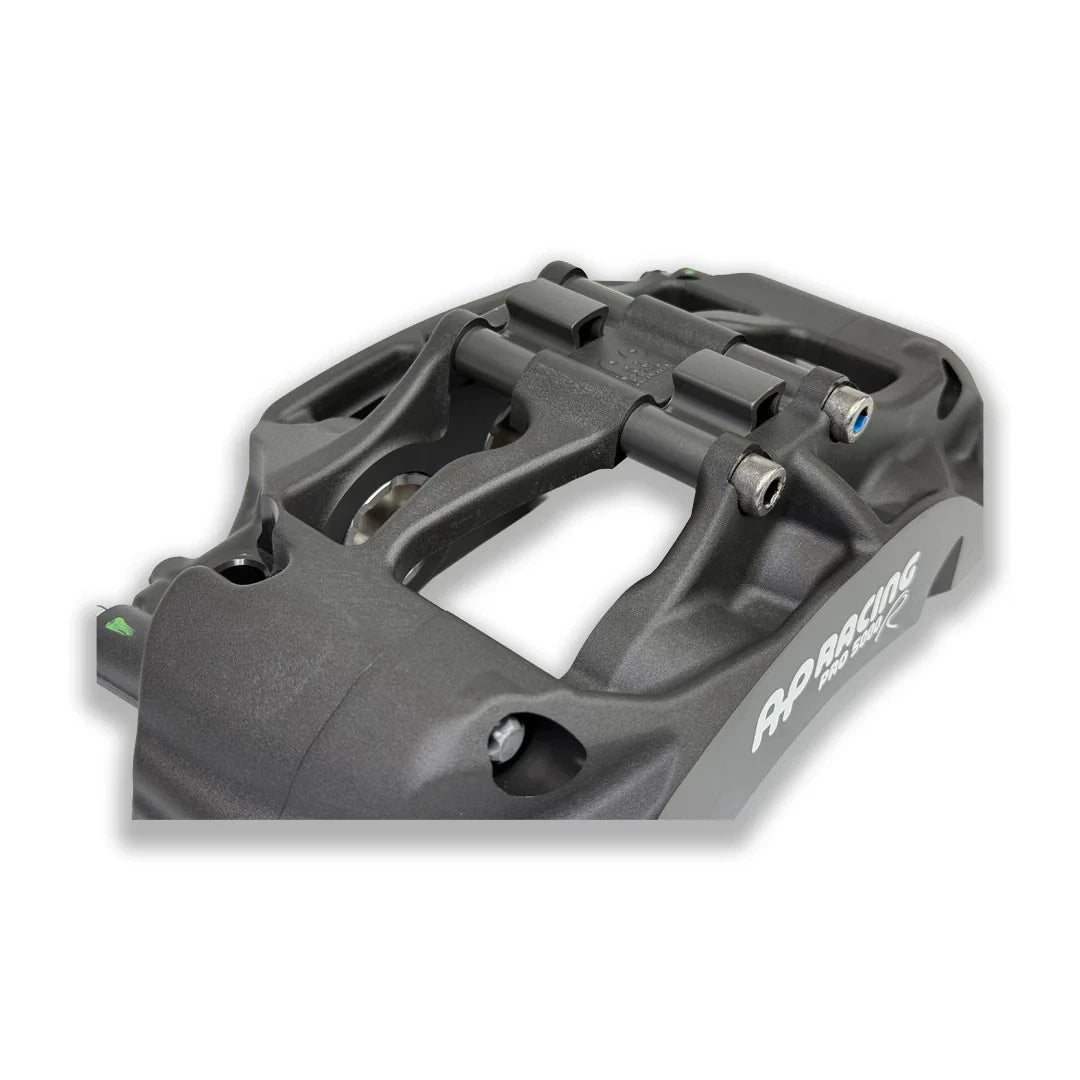

AP Racing Pro5000R CP9660-2S4L Right Hand Caliper Anodised Finish 6 Piston
Sold as individual caliper.
To purchase a pair together please see HERE
Benefits from a radical asymmetric design concept.
- Superior dynamic performance.
- Increased stiffness.
- Forged, two piece aluminium alloy body.
- Available with either Anodised or Nickel plated surface treatments.
- Radial mount, 180.0mm x 42.0mm centres.
- Suits Ø380.0mm Max or 356.0mm Min x 36.0mm Max or 32.0mm Min thick discs.
- Stainless Steel Pistons.
- High temperature seals.
- 4lb Anti-knockback springs fitted.
- Stainless Steel wear plates.
Part Numbers:
Anodised Surface Treatment
- Right Hand Caliper = CP9660-2S4L
- Left Hand Caliper = CP9660-3S4L
| Brake Pad Information |
CP3905D54 |
| TECHNICAL SPECIFICATIONS | |
| Piston Sizes - mm | - Ø27.0 x 2 - Ø31.8 x 2 - Ø38.1 x 2 |
| Piston Area - cm² | 50.1 |
| Disc Diameter - mm | - Max = 380.0mm - Min = Ø356.0 |
| Disc Thickness - mm | - Max = 36.0 - Min = 32.0 |
| Weight - No Pads = Kg | 2.78 |
| Hydraulic Threads | M10x1.0 |
| Mounting Type | Radial |
| Mounting Centres - mm | 180.0 |
| Mounting Offset - mm | 42.0 |
| Mounting Hole Ø - mm | 12.15 Nominal |
| PL Dimension - mm | 63.5 |
| Bleedscrew Tightening Torque - Nm | 17 |
